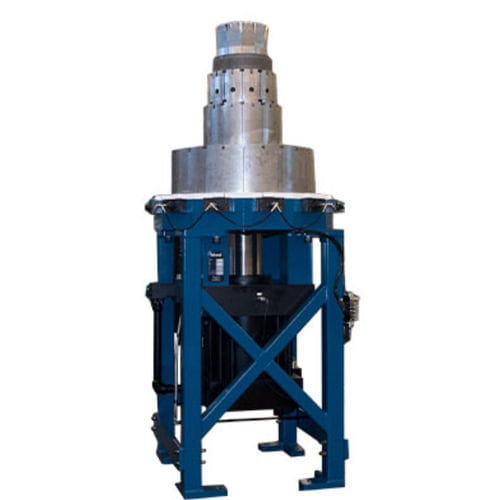

Expander

Application - - Ring Expanding - Industry - - Utility - Frame Style - - Non-traditional - Special Features - - • 4-tier expansion system • 12 jaws - Intended Use - - Used to size pipe restraint rings, which vary in diameter from 13” to 36”, for a waterworks utility company Custom Features: Used to size pipe restraint rings, which vary in diameter from 13” to 36”, for a waterworks utility company 4-Tier expansion system supports multiple ring sizes and diameters Min. Draw Bar Pull: 86 Tons; Max. Draw Bar Pull: 250 Tons Max. Part Expansion: 1” Number of Jaws: 12 Cone Height: 42.25” Skid-mounted power system and reservoir Kidney loop filter/cooler circuit with thermostatically-controlled electric fan-powered oil cooler Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing Backed by Beckwood’s industry leading dedicated service and support team
