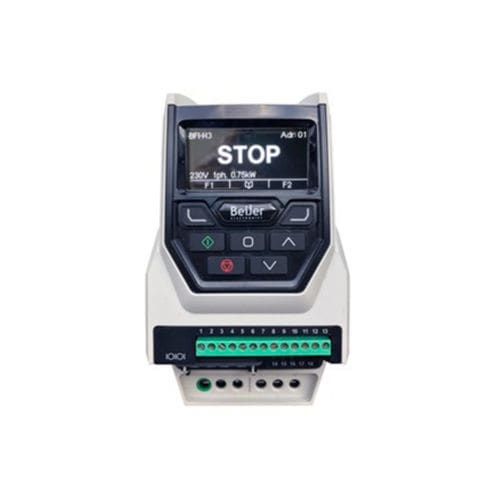

Vector control frequency inverter BFI-H3-22-0043-1F12-MN

inductionsynchronouspermanent magnet

-Output power 0.75 kW -Output 3x230 VAC, 4.3 A -Input voltage 1x200-240 VAC -IP20 Mechanical IP class - IP20 Physical size - Size 2 Measurements (H x W x D) - 221 mm x 110 mm x 185 mm Weight - 1,8 kg Typical power loss at rated power - 2 % of rated power Main switch - No Built in Main switch, control switch and potentiometer - No Conformal coated PCBs - Yes, IEC 60721-3-3, 3S2/3C2 Output ratings Output voltage - 3 x 230 VAC Rated motor current - 4,3 A Overload capacity - 110% for 60 seconds, 165% for 4 seconds Motor power - 0.75 kW Output frequency - 0 – 250Hz, 0.1Hz resolution Supported motor types - 3 phase AC induction (IM), AC permanent magnet (PM), Brushless DC (BLDC), Synchronous reluctance (SynRM) Built-in brake transistor - No Regenerative capacity - No brake transistor Input ratings Supply voltage - 200 – 240VAC ± 10% Voltage fluctuations - +/- 10% Phase imbalance - 3% maximum allowed Displacement factor - > 0.98 Supply frequency - 48 – 62Hz Power cycles - 120 per hour maximum, evenly spaced Total harmonic current distorsion - EN61000-3-12 Control specification Control modes - Variable torque V/F, Variable torque energy optimised V/F, Constant torque U/F, Sensorless Vector Speed Control, Synchronous Reluctance Motor Control, Brushless DC Motor Control, Open Loop PM Vector Control Current/torque limitation - Torque and current limitation PWM frquency - 4-32 kHz effective Stopping mode - Ramp to Stop: User Adjustable 0.1 – 6000 seconds. Fast stop. Coast to Stop Braking - Motor Flux Braking
