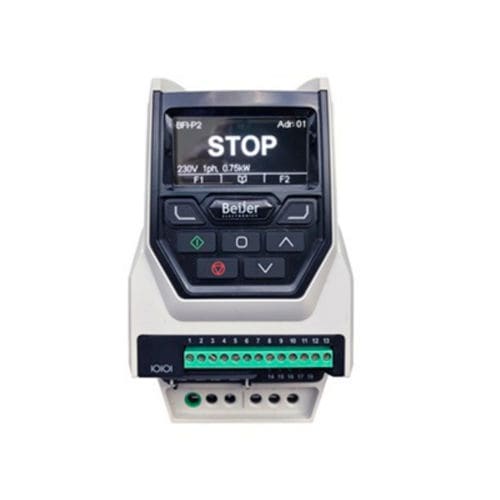

Induction frequency inverter BFI-P2-22-0043-1F42-MN

analogsynchronouspermanent magnet

-Output power 0.75 kW -Output 3x230 VAC, 4.3 A -Input voltage 1x200-240 VAC -IP20 Mechanical IP class - IP20 Physical size - Size 2 Measurements (H x W x D) - 221 mm x 110 mm x 185 mm Weight - 1.8 kg Typical power loss at rated power - 2 % of rated power Main switch - No Built in Main switch, control switch and potentiometer - No Conformal coated PCBs - Yes, IEC 60721-3-3, 3S2/3C2 Output ratings Output voltage - 3 x 230 VAC Rated motor current - 4.3 A Overload capacity - 150% for 60 seconds, 200% for 4 seconds Motor power - 0.75 kW Output frequency - 0 – 500Hz, 0.1Hz resolution Supported motor types - 3 phase AC induction (IM), AC permanent magnet (PM), Brushless DC (BLDC), Synchronous reluctance (SynRM) Built-in brake transistor - Yes Regenerative capacity - 100 % ED Input ratings Supply voltage - 200 – 240VAC ± 10% Voltage fluctuations - +/- 10% Phase imbalance - 3% maximum allowed Displacement factor - > 0.98 Supply frequency - 48 – 62Hz Power cycles - 120 per hour maximum, evenly spaced Control specification Control modes - V/F Voltage Vector, Energy Optimised V/F, Sensorless Vector Speed Control, Sensorless Vector Torque Control, Synchronous Reluctance Motor Control, Brushless DC Motor Control, Closed Loop (Encoder) Speed Control, Closed Loop (Encoder) Torque Control, Open Loop PM Vector Control Current/torque limitation - Torque and current limitation PWM frquency - 4-32 k Hz effective Stopping mode - Ramp to Stop: User Adjustable 0.01 – 600 seconds, Fast stop, Coast to Stop Braking - Motor Flux Braking, Built-in Braking Transistor Skip frequency - Yes Analog setpoint control - 0 to 10V, 10 to 0V, −10 to 10V, 0 to 20mA, 20 to 0mA, 4 to 20mA, 20 to 4mA
