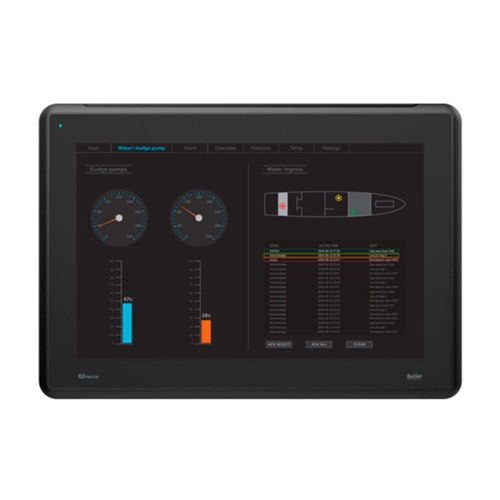

Resistive touch screen HMI terminal X2 marine 15 SC

VESA mountingpanel-mount1280 x 800

1.5 GB application memory Ethernet 2x100 Mbit CODESYS control integrated CE, FCC, KCC, UL approvals DNV GL, KR, LR, ABS, CCS, BV, NK, RS marine approvals General description Part number - 640009005 Life cycle status - Active Warranty - 2 year Certifications General - CE, FCC, KCC, UL 61010-2-201 Marine - KR, LR, ABS, CCS, NK, DNV GL, BV, RS Safety - UL 61010-1, UL 61010-2-201, CAN/CSA-C22.2 No. 61010-1, CAN/CSA-C22.2 No. 61010-2-201 Mechanical Mechanical size - 410 x 286 x 61mm Number of touches - 1million finger touch operations Cut-out size - 394 x 270mm Weight - 3.85 kg Housing material - Powder-coated aluminum, Black Power Input voltage - 24 V DC (18 to 32 VDC)CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supplymust conformwith the requirements for class II power supplies. Power consumption (max) - 31.2W Input fuse - Internal DC fuse System RAM - 2 GB FLASH - 2GB SSD(eMMC), 1.5GB free for application Display Backlight life time - 50000 hours Backlight brightness - 450 cd/m2 Backlight dimming - Marine optimized dimming Softcontrol Codesys runtime version - 3.5 Codesys EtherCAT - Yes Codesys Modbus Ethernet - Yes Codesys Modbus RTU - Yes CANopen - Yes Non volatile variables - 64 KB Digtal IO Digital output - 2xDO Solid state relay, 0.5A@24VDC Serial communication Number of serial ports - 1 Port 9pin DSUB Ethernet communication Number of Ethernet ports - 2 Communication CAN Number of CAN ports - 2 CAN port 1 - 0.5 MBit CAN port 2 - 0.5 MBit Expansion interface Expansion port - Yes, ciX expansion module SD card - SD and SDHC USB - 2xUSB 2.0 500mA Environmental Operating temperature - -10°C to +60°C
