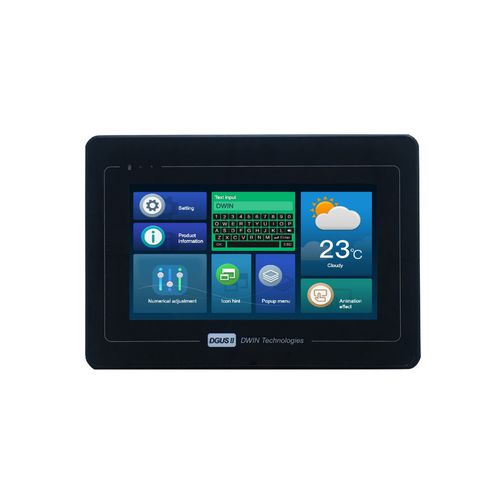

TFT LCD display module DMG80480T070_A5WTRTNresistive touch screencolor
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, TN, resistive touch screen
- Type
- color
- Format
- 800 x 480
- Screen size
- 7"
- Applications
- industrial
- Interface
- RS-232, RS-485, Modbus, UART
- Protection level
- IP65
- Other characteristics
- cost-effective, LED-backlit, smart
- Width
154.2 mm
(6.0709 in)- Height
85.88 mm
(3.3811 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
● Self-designed T5L ASIC, 16.7M Color, 24bit, 800*480 Pixel;
● All in one resistive touch screen,built-in speaker, photosensitive resistance;
● RS232/RS485 Interface,8Pin_3.81mm Socket ;
● Download via SD card or on-line serial port ;
● DWIN DGUS V7.6 GUIs Development tool ;
● Two Development Modes: DGUS II/ TA(Commend);
● TN View Angle:70/70/50/70 (L/R/U/B);
● Support connect with PLC,Modbus protocal is supported.
