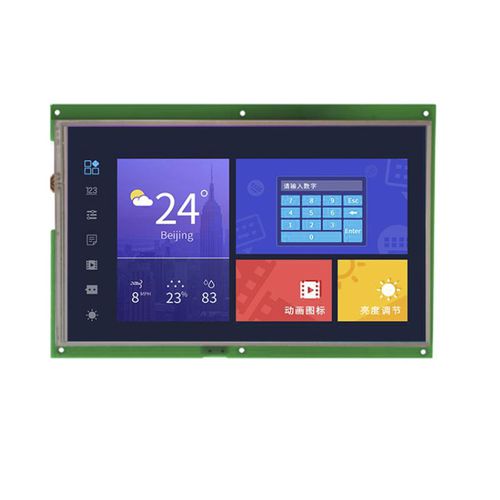

TFT LCD display module DMG12800L101_01W

capacitive touch screenresistive touch screen10.1"

Product Description DMG12800L101_01W is the intelligent TFT LCD Module with UART PORT which can be controlled by ANY MCU via Simple Powerful Command Set. So it can be used as colourful TFT Display & Touch controller in various electronic equipment. It includes CPU , TFT Driver,Flash Memory,UART port,power supply and so on,the important is that it has the ready-made Basic Control Program and Powerful Design Software,so that it can reduce much development time and cost for engineers. Specification- Brand Name: DWIN Origin: CN(Origin) Display Mode: 500:1 Model Number: DMG12800L101_01W is_customized: Yes Type: TFT Size: 10.1 inch Resolution: 1280*800 Color: 24 bit Panel Type: IPS Backlight: LED Viewing Angle: 85/85/85/85 Active Area: 216.58mm x 135.36mm View Area: 217.6mm x 136.4mm Working Temperature: -20 to + 60 ℃ Storage Temperature: -30 to + 60 ℃ Interface: 8N1, TTL, CMOS, RS232, RS485. USB Accessory: 8Pin 2.0mm Grade: Consumer
