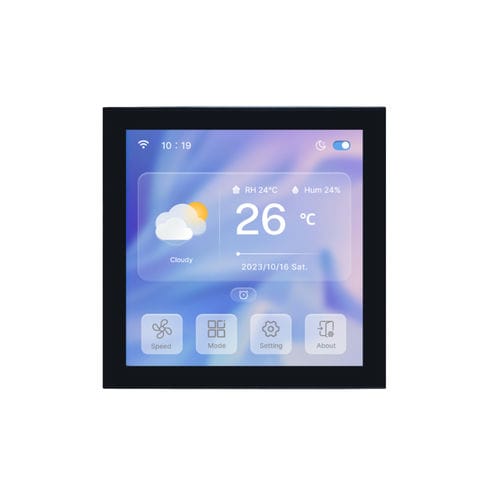

Digital thermostat TC040C15W04NTCinfraredrelay
Add to favorites
Compare this product
Characteristics
- Heating technology
- NTC, infrared
- Contact type
- relay
- Mounting
- wall-mounted
- Supply voltage
- 220VAC
- Applications
- room, for heating and cooling, HVAC, for cooling unit
- Other characteristics
- digital, precision, remote sensing
- Temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)- Switching power: current
Min.: 150 mA
Max.: 350 mA
- Switching power : voltage
Min.: 110 V
Max.: 230 V
Description
Features:
(1)Based on the T5L0 ASIC CPU, running the DGUS II human-machine interaction software platform, ultra-slim thermostat.
(2)4.0-inch, 480*480 pixels resolution, 262K colors, IPS-TFT-LCD, wide viewing angle.
(3)OCA bonded capacitive touch screen.
(4)With speaker and RTC.
(5)With conformal coating.
(6)Support temperature measurement using NTC, infrared reception, temperature and humidity real-time display, proximity sensing function, expandable offline voice, WIFI signal enhancement.
Catalogs
TC040C15W04
13 Pages
