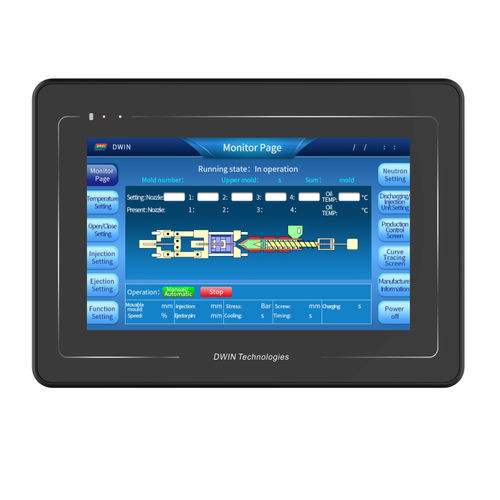

LCD/TFT display module DMT10600T070_36WTRresistive touch screenIPS1024 x 600
Add to favorites
Compare this product
Characteristics
- Type
- LCD/TFT, IPS, resistive touch screen
- Format
- 1024 x 600
- Screen size
- 7"
- Applications
- industrial, instrumentation, for control panels, for remote control
- Other characteristics
- cost-effective, wide-viewing angle, RS-232, UART, Modbus RTU, IP65, CANopen, Linux
- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)25 °C
(77 °F)
Description
Features:
--Industrial Linux intelligent display terminal based on T113, running Linux5.4 operating system.
--7.0-inch, 1024*600 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle, Resistive Touch, with shell.
--Adopt QT environment for secondary development.
--Available for multi-language, vector font library, picture library, video library and audio library.
--Compatible with network cable connection with PC to download update project.
--Available for RS232, RS485, CAN and Ethernet ports to connect and communicate with external devices.
