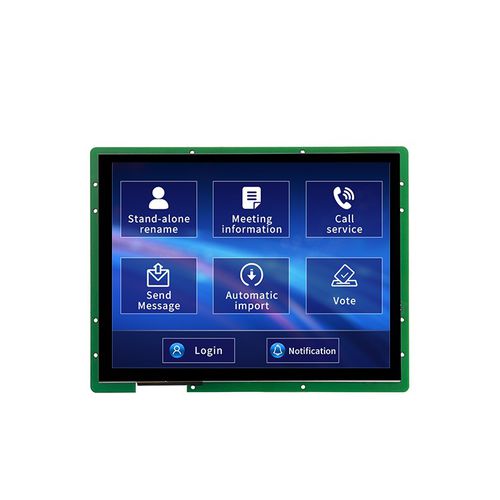

LCD/TFT display module DMG80600T104_01Wresistive touch screencapacitive touch screenTN
Add to favorites
Compare this product
Characteristics
- Type
- LCD/TFT, TN, capacitive touch screen, resistive touch screen
- Format
- 800 x 600
- Screen size
- 10.4"
- Applications
- industrial
- Other characteristics
- with built-in electronics, UART, LED-backlit
- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Features:
● Based on self-designed T5L1 ASIC, 16.7M Color, 24bit, 800*600 Pixel;
● No touch screen/Resistive touch screen/Capacitive touch screen;
● TTL &RS232 Interface,8Pin_2.0mm connection wire;
● Download via SD card or on-line serial port;
● Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required;
● Dual Development System: DGUS II/ TA(Instruction set);
● TN, TFT LCD View Angle: 70°/70°/50°/70° (L/R/U/D) ;
