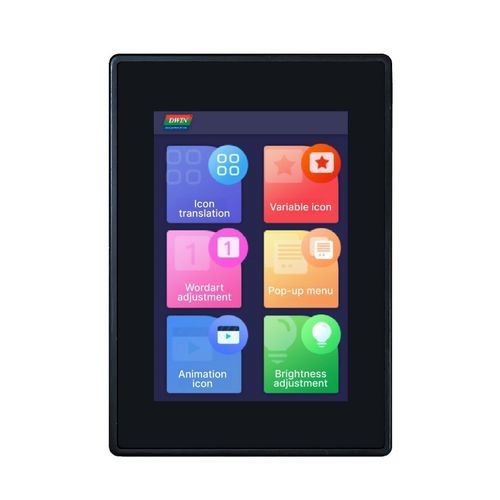

HMI display module DMG48320T035_15WTRTFT LCDIPScolor
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, IPS
- Type
- color
- Format
- 320 x 480
- Screen size
- 3.5"
- Applications
- industrial, HMI
- Interface
- RS-232, RS-485
- Configuration/mounting
- integrated
- Other characteristics
- smart
- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Features
● Powered by T5L0 ASIC, running DGUS II HMI platform, industrial-grade smart LCM;
● 3.5 inch, 320*480 resolution, IPS-TFT LCD;
● RS232/RS485, 6Pin_2.0mm connection wire;
● Download Ways : SD card or on-line serial port;
● Power supply：Default is 9~36V, 12V as default.
● With enclosure,and conformal coating;
● With GUI & OS dual-core, GUI with rich controls. DWIN OS kenel is open to the second-development, via DWIN OS language or C51;
