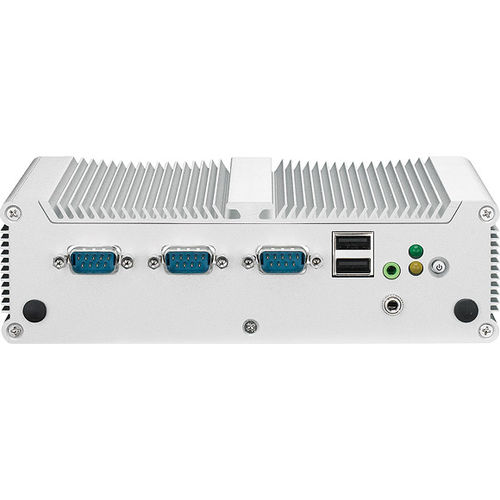

Box computer NiceE 103

embeddedIntel® Atom D425VGA

Designed with Intel® D425 1.8 GHZ processor and ICH8M embedded chipset and 12VDC input to take a low power consumption advantage, NiceE 103 is a compact fanless industrial computing housed in a size of 185mm x 131mm x 54mm. The NiceE 103 supports three RS232, one RS232/422/485, two 10/100/1000 LAN port, four USB ports, one digital I/O, one VGA display, audio jack (speaker-out, Mic-in) and one external CF card socket. It is also a wireless-ready platform which has Mini-PCIe socket and SIM card holder onBoard to support optional GSM wireless module or Wi-Fi module (default). EZ Controller, NISE 103 has a digital I/O port which offers 8X isolated digital input/output channels. CPU Support - Onboard Intel® Atom™ D425 processor, 1.8 GHz Intel® ICH8M chipsets Main Memory - 1 x DDR3 SO-DIMM sockets, single channel, support up to 2GB DDR3 800 SDRAM, un-buffered and non-ECC I/O Interface-Front - ATX power on/off switch HDD access/ power status LEDs 3 x COM ports: COM2: RS232/422/485; COM3& COM4: RS232 2 x USB2.0 pocrt Audio jack (speaker-out, Mic-in) 2 x Antenna holes I/O Interface-Rear - 1 x VGA COM1: 1x RS232 2 x Intel® GbE LAN port 2 x USB2.0 port +12V DC power input 1 x DB15 male digital input & output Digital Input & Output - 4 x Digital Input (Source type): - Input Voltage (Dry Contact): Logic 0: Close to GND Logic 1: Open - Input Voltage: Logic 0: 3V max Logic 1: +5V ~ +30V 4x Digital Output: - Supply voltage: 5~30V DC - Sink current: 200 mA max. per channel Device - 1 x 2.5” HDD driver bay 1 x External CF Socket 1 x SATA DOM 1 x Mini-PCIe socket Default: support optional Wi-Fi module Option: support optional 3.5G module
