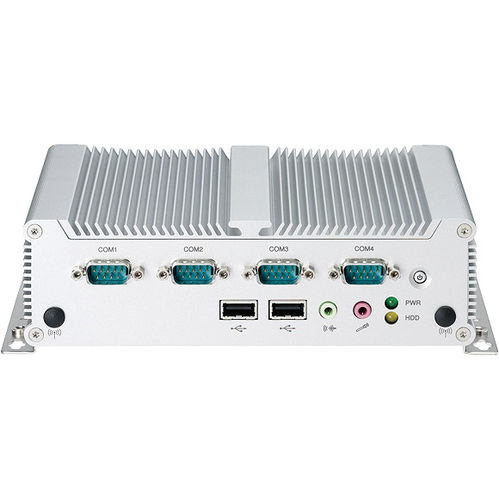

Box computer NiceE 104

Intel® Atom D2550HDMIVGA

Powered by Intel® Atom™ Dual Core D2550 1.86 GHz and NM10 PCH, NiceE 104 has higher graphic and computing performance, but 3 Watts less power consumption compared with previous Atom platform! With performance enhance, NiceE 104 still follow NISE guideline with fanless and cables-less concept housed in a compact chassis, 185mm (W) x 131mm (D) x 54mm (H). The NiceE 104 offers dual independent display capability through DVI-I and HDMI connectors, Dual Intel GbE LAN ports, 6x USB2.0, 2x RS-232, 2x RS-232/422/485, CFast socket and miniPCIe socket for optional wireless module connection, either WiFi or 3.5G module. CPU Support - Onboard Intel® Atom™ Dual Core processor D2550, 1.86 GHz, 1M L2 cache Intel® NM10 Express chipset Main Memory - 1 x DDR3 SO-DIMM sockets, support up to 4G DDR3 -800/1066 SDRAM, un-buffered and non-ECC I/O Interface-Front - ATX power on/off switch HDD access/ power status LEDs 4x COM ports (COM2& 3: RS-232/422/485) 2x USB2.0 port Audio jack (speaker-out & Mic-in) 2x antenna holes I/O Interface-Rear - Dual Intel® 82574L GbE LAN ports; Support WoL, teaming and PXE 4x USB2.0 port 1x HDMI 1x DVI-I (support VGA & DVI-D display via cable) 1x 2-pin DC input, Support +10 to 28VDC input 1x external screwed type CFast socket Device - 1x 2.5" HDD driver bay 1x External CFast Socket 1 x mini-PCIe socket (support optional Wi-Fi or 3.5G module) Power Requirements - Support +10 to 28VDC input 1x optional 12V, 60W power adapter
