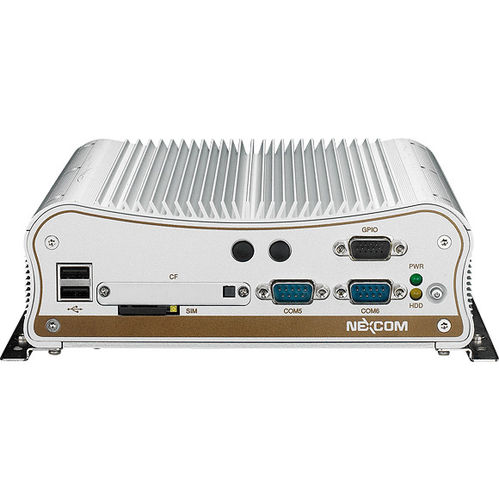

Box computer NiceE 2100

Intel® Atom D525VGASO-DIMM

Main Board - NISB 2100 On-board Intel® Atom™ D525 Dual Core processor, 1.8GHz, 1M Cache Intel® ICH8M PCH Main Memory - 1 x DDR3 SO-DIMM socket, support up to 4 GB DDR3 800 SDRAM memory module, unbuffered and non-ECC Expansion - 1x Mini-PCIe socket onboard Default: support optional Wi-Fi module Option: support optional 3.5G module I/O Interface-Front - ATX Power on/off switch HDD Access/ Power status LEDs 2 x USB2.0 ports 2 x Serial port (RS232) 1 x external SIM card holder 1 x DB15 GPIO connector 2 x Antenna holes (Either optional Wi-Fi or Mobile wireless module) I/O Interface-Rear - 9 ~ 36V DC input 1 x 3-pin for remote power on/off switch 1 x DB15 VGA port 3 x Intel® GbE LAN ports 1 x Speaker out 2 x USB2.0 ports 4 x Serial port (2x RS232 and 2x RS232/422/485 with auto-flow control) Storage - 1 x 2.5" SATA HDD drive bay 1 x external CF socket Power Requirements - ATX Power mode DC to DC power design on-board, support from 9V ~ 36V DC Optional 19V, 65W power adapter Dimensions - 195 mm (W) x 200 mm (D) x 90 mm (H) (7.7" x 7.9" x 3.5") Main Feature - On-board Intel® Atom™ Dual Core D525 (1.8GHz, 1M Cache) processor - One DDR3 SO-DIMM socket, DDR3 800 4G memory module support max. - 3 x Intel® 1000/100/10 Mbps LAN ports - 4 x USB2.0/1x VGA - 1 x DB15 GPIO connector - 4 x RS232 and 2 x RS232/422/485 with auto flow control - One external CF Socket and one external SIM card holder - Support +9V to 36VDC input; Support ATX power mode
