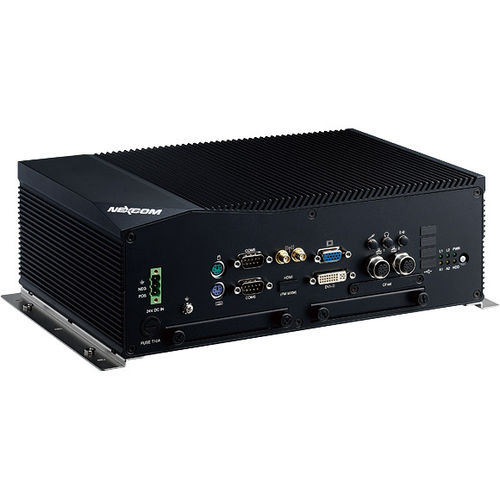

Box computer nTUF 610

Intel® Core i7VGADVI

nTUF Series stands for NEXCOM Tough Computer mainly applied to ECDIS, Radar and Positioning system applications in Marine Bridge and Control Room. The nTUF 610 Marine Fanless Computer is based on Intel® 2nd Generation Core™ i7 platform providing the highest graphic and computing performance with versatile interfaces for Marine peripherals connection. The nTUF 610 features with 4x USB2.0, 2x M12 GbE LAN port, 1x VGA, 1x DVI-D, 2x DB9 RS232, 2x PS/2, 1x CFast socket and two cold swappable 2.5" SSD trays on the front panel. In the rear side, the nTUF 600 offers 4x Digital Input, 4x Digital Output and 4x NMEA ports with 2KV optical isolation protection. The isolated +24VDC input in nTUF 600 is designed for Marine applications followed by IEC60945 regulations. Powered by Intel® Core™ i7 platform, the superior computing and graphic performance enable the nTUF 610 an ideal solution for Marine ECDIS Navigation applications. The nTUF 600 and nTUF 610 have been certified by DNV, compliant to DNV 2.4, IACS-E10 and IEC60945 standards. With DNV certification, nTUF system can be easily applied to integrated bridge system, vessel automation system, ECDIS application for all vessels like bulk carriers, workboat, cruise, sea patrol..etc. - Onboard Intel® 2nd Generation CoreTM i7-2610UE 1.5 Ghz - 4x USB ports - Dual M12 connector for Intel® 82574L GbE LAN ports - 1x VGA display output - 2x RS232 - 2x PS/2 for keyboard and mouse - 1x external CFast socket - 1x mini-PCIe with two antenna holes - Support +24V DC power input - Dual Cold Swappable 2.5” SSD tray - Supports ATX power mode, WoL, LAN teaming and PXE function
