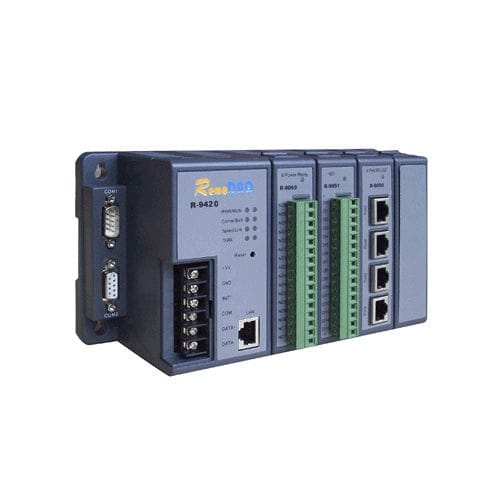

DIN rail PLC R-9420

with integrated I/OModbus TCPEthernet

R-9420 is an I/O system based on Ethernet. It communicate distance can reach 100M without repeater. Users can configure through Ethernet and allow 4 PC visit data at the same time. - ARM 32-bit RISC CPU - 10/100 base-T automatically check high speed communication terminal - Support Modbus/TCP communication protocol, easy to integrate - Support UDP event dealing function - Can transmit 100M without any repeater - Can remote configure through Ethernet - Allow 8 PC visit at the same time - 8 I/O slot can support128 point data monitor - 1500VDC Ethernet communication isolation - Build-in system auto-reposition watchdog - Windows tool: I/O model configure and calibrate, network automatically search data stream setup, present status monitoring and warning trigger. - Provide ActiveX driver for user developing Specification: - Processor: CPU: 32-bit RISC CPU I/O model capacity: 4 slot Memory: 4MB RAM 512KB Flash ROM Operating system: real-time OS Status display: power (3.3V, 5V), CPU, communication (link, active, 10/100Mbps, TX, RX) CPU power consumption: 5.0W Reset switch : yes - Isolation protection Ethernet Communication； 1500VDC Communication power 3000VDC I/O model isolation：3000VDC - Diagnosis： Power up Self test : hardware and software - Ethernet Interface: 10/100Base T Lead: UTP, 5 or higher wire Bus connection: RJ45 model slot Communication protocol： Modbus/TCP，TCP，UDP，IP，ARP Data transmitting speed: Max 100Mbps Max communicate distance: 100m without repeater Response time: less than 5ms
