- Channel:8-channel differential
- Resolution: 12-bit ( additional symbol bit)
- Input type: mV, V, mA
- Input range:±500mV, ±1V, ±5V, ±10V, ±200mA,
0~+500mV
0~+1V, 0~+5V
0~+10V
0~20mV, 4~20mA
- Isolated voltage: 3000VDC
- Input impedance: 20MΩ (voltage input) 125Ω(current input)
- Band width: 1KHz
- Signal input band width: voltage and current input are both 1KHz
- Accuracy: ±0.1% or higher
- CMR@50/60Hz: 92db(Min)
- Power consumption: 1.75W(typical) 2.2W(Max)
- Each channel can set different range
- Attention: the voltage between two input terminators must be ≤±15V

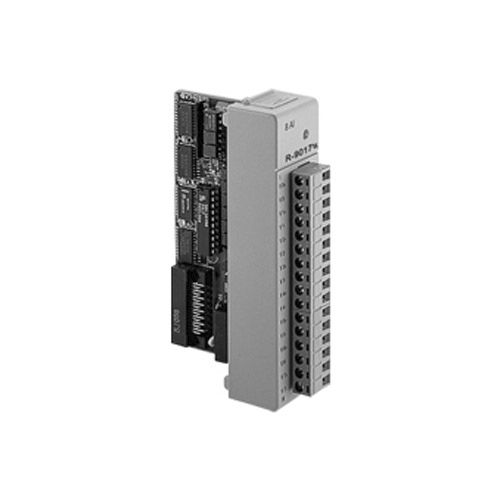

Order information: R-9017H, 8-channel Analog Input module-mV, V, mA
