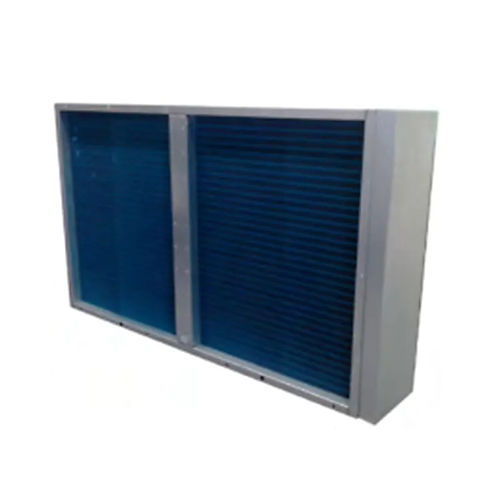

Heat pipe heat exchanger HPS series

gas/liquidaluminumgalvanised steel

- Made by cooper tube with hydrophilic aluminum fin – Filled with special fluoride for heat exchange media – Heat insulation section in the middle for heat and cold source insulation – Free of maintenance, washable and longer service life – Total heat recovery efficiency up to 82% 1. Applying cooper tube with hydrophilic aluminum fin, low air resistance, less condensing water, better anti-corrosion. 2. Galvanized steel frame, good resistance to corrosion and higher durability. 3. Heat insulation section separates heat source and cold source, then liquid inside the pipe has no heat transfer to outside. 4. Special inner mixed air structure, more uniform airflow distribution, making heat exchange more sufficient. 5. Different working area designed more reasonably, Special heat insulation section avoids leakage and crosscontamination of supply and exhaust air, heat recovery efficiency is 5% higher than the traditional design. 6. Inside the heat pipe is special fluoride without corrosion, it is much safer. 7. Zero energy consumption, free of maintenance. 8. Reliable, washable and long life. When heating one end of the heat pipe, liquid inside this end evaporates, the steam flows to the other end under pressure difference. Steam will condense and release heat in the condensing end. Heat transfers from high temperature to low temperature finished, condensate flows back to the evaporating end. In the same way, liquid inside the heat pipe evaporates and condenses circularly, so, heat is transferred from high temperature to low temperature constantly.
