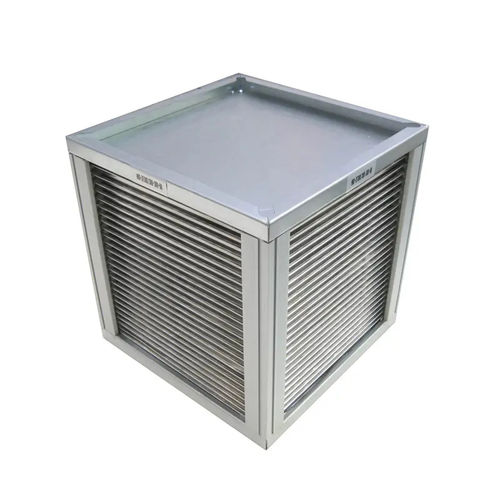

Plate heat exchanger HBS series

air/airaluminumindustrial

Made by flat aluminum foils of 0.12mm thickness; Two air streams flow crossly; Suitable for room ventilation system and industrial ventilation system; Heat recovery efficiency up to 70%. Sensible heat recovery Total separation of fresh air & exhaust air streams Heat recovery efficiency up to 80% 2-side press shaping Double folded edge Completely joint sealing. Under pressure of 700Pa, air leakage less than 0.6% Heat exchanger is made of pure aluminum foils, with galvanized end cover and aluminium alloy wrap angle. Max. air temperature 100℃, it is suitable for most of the occasion. Heat exchanger is made of pure aluminum foils cover by special anti-corrosion material, with galvanized end cover and aluminium alloy wrap angle., it is suitable for the corrosive gas occasion. Heat exchanger is made of pure aluminum foils, with galvanized end cover and aluminium alloy wrap angle. Sealing material is special and allow the Max. air temperature to be 200℃, it is suitable for special high temperature occasion. Aluminum foils thickness range from 0.12 to 0.18mm because of the different specification heat exchanger.
