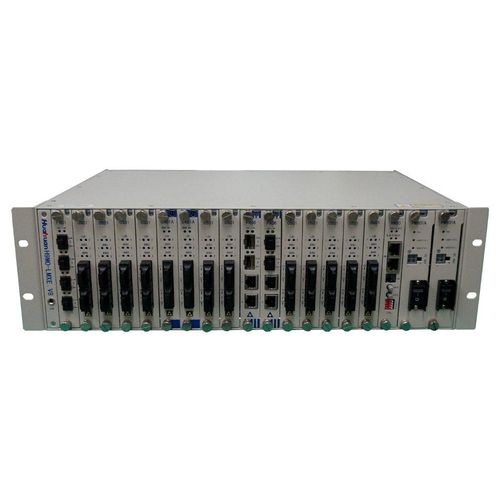

Module multiplexer H9MO-LMXE.V8E

virtualpower

H9MO-LMXE.V8E is a carrier-class,cost-effective, compact, high-capacity SDH & IP Network integratedtransmission platform that is designed for application in metro and accessnetworks to facilitate the efficient transport of traditional TDM andincreasing Ethernet data traffic for service providers. Multiple services canbe transported over SDH network and IP metro network easily via H9MO-LMXE.V8E.Both SDH Cross-connection Matrix and Packet Switching Core are supported. Itcomplies with Carrier Ethernet standards defined by MEF. H9MO-LMXE.V8E is a card basedcompact SDH & IP Network integrated equipment, designed mainly as a gatewaynode between the core SDH/IP network and a number of remote CPE boxes. It mayalso be used as a multi service SDH ADM node in a typical ring or mesh network.The 3U high 19” wide chassis of the H9MO-LMXE has 19 slots, with 2 slots forthe 1+1 power cards, 1 slot for network management card, 2 slots for TDMcross-connection cards, 2 slots for Packet switching cards, and 12 slots foruniversal service cards. H9MO-LMXE.V8E supports multiple SDH network features as follows: -Support1+1 MSP, SNCP protection -Management channel can be DCC/E1/VC12 -Support up to STM-64 -E1 BERT test is embedded -Internal clock/external clock/line clock/clock holdover -Etherne tservice supporting GFP encapsulation, VC12 virtual concatenation and LCAS, PVLAN, 801.1Q VLAN and QinQ -Large cross-connect matrix capacity is 384*384 VC-4 level full cross connection or 136*136 VC-4 of VC-12or VC-3 level full cross connection -192 remotesite’s Ethernet over 4*E1 aggregation -192 Ethernet over SDH aggregation
