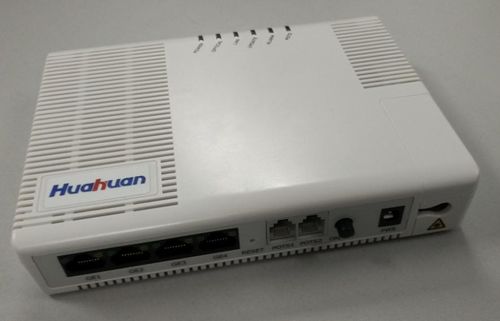

Managed ethernet switch H18GN series

8 ports6 ports2 port

To deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application, the H18GN Series GPON ONT incorporate s interoperability, key customers’ specific requirements and cost-efficiency. Equipped with ITU-T G.984 compliant 2.5G Downstream and 1.25G Upstream GPON interface, the GPON ONT supports the full Triple Play of services including video, and high speed internet access. Compliant with standard OMCI definition, ONT is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance. Power Supply +12V (feed via external AC/DC adapter) -8-PIN power input with UPS monitoring and 2-PIN power adaptor input -Dying Gasp support -Power switch Working Environment -Temperature: 0℃ ~ 40℃ -Humidity: 5% ~ 95% relative humidity GPON Interface -Compliant with ITU-T G.984 GPON standards -SFF type laser, SC/APC connector -1.244 Gbps Burst Mode Upstream Transmitter -2.488 Gbps Downstream Receiver -Compliant with ITU-T G.984.2 Amd1, Class B+ -0.5dBm ~+5dBm launch power, -27dBm sensitivity, and -8dBm overload Wavelengths: -US 1310nm, DS 1490nm -Laser compliant with FCC 47 CFR Part 15, Class B, and FDA 21 CFR 1040.10 and 1040.11, Class I, ONT support Class C or Class C+ optics as an option -Support G.984.5 Blocking Filter as an option -Multiple T-CONTs per device -Multiple GEM Ports per device -Flexible mapping between GEM Ports and T-CONT -Activation with automatic discovered SN and password in conformance with ITU-T G.984.3 -AES-128 Decryption with key generation and switching -FEC (Forward Error Correction) in both directions
