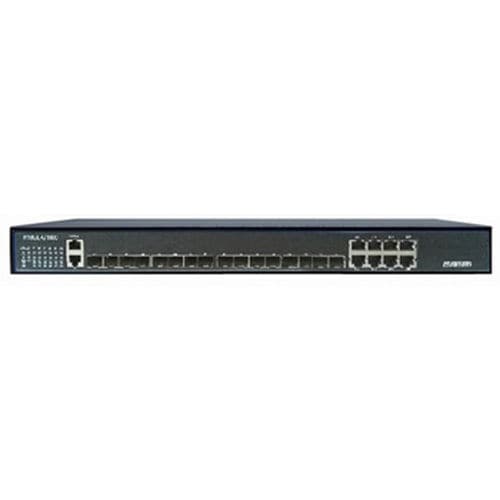

Industrial optical network unit H18GL-G1600

Ethernet

H18GL-G1600 provides 8 downstream GPON ports, 8 uplink GE optical port and 8 GE electrical ports,with an expansion slot, which can access 2 10GE SFP+ ports. The 1U height can be easy installed and maintained to save space. The H18GL-G1600 adopts the industrial advanced technology, with powerful Ethernet services and QoS feature, supporting SLA and DBA. The splitting ratio up to 1:128, supporting different types of ONU in different networks, minimizing operators’investments. Specifications Switching capacity -102Gbps Throughput (IPv4/IPv6) -75.88MPPS Ports -8*PON port, 8*GE FX+8*GE TX, 2*10GE SFP+, 1*Console Power redundancy -Dual power supply. Can be double AC, double DC or AC+DC Power supply -AC: Input 100～240V，47～63Hz -DC: Input -36V～-75V Power consumption ≤85W Outline dimensions (mm) (W*D*H) -440mm×44mm×380mm Weight (in maximum configuration) ≤3kg Environmental requirements -Working temperature: -15°C～55°C -Storage temperature: -40°C～70°C -Relative humidity: 10%～90%，no condensing
