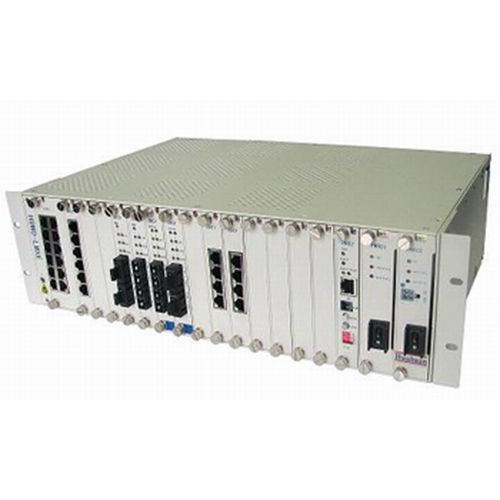

Module multiplexer H9MO-LMXE.V2

digitalvirtualSDH/MSTP

H9MO-LMXE.V2 is a carrier-class,cost-effective, compact (only 3U high), STM-1/STM-4/STM-16 SDH/MSPP platform that is designed for application in metro and access networks to facilitate the efficient transport of traditional TDM and emerging data traffic for service providers. H9MO-LMXEV2 is a card based compact SDHequipment, designed mainly as a gateway node between the core SDH network and a number of remote CPE boxes. It may also be used as a multi service SDH ADM node in a typical ring or mesh network. The 3U high 19” wide chassis of the H9MO-LMXE.V2 has 19 slots, with 2 slots for the 1+1 power cards, 1 slot fornetwork management card, 2 slots for network interface unit(NIU) cards, and 14 slots for local interface unit(LIU) cards. H9MO-LMXE supports multiple features as follows: -Support1+1 MSP, SNCP protection -Managementchannel can be DCC/E1/VC12 -Support upto STM-16 -E1 BERT testis embedded -Internalclock / external clock / line clock / clock holdover -Ethernetservice supporting GFP encapsulation, VC12 virtual concatenation and LCAS, PVLAN, 802.1Q VLAN and QinQ -Largecross-connect matrix capacity is 96*VC-4 of VC-4 level full cross connection or32*VC-4 of VC-12 or VC-3 level full cross connection -224 remotesite’s Ethernet over 8*E1 aggregation -882 remotesite’s Ethernet over 1*E1 aggregation -224Ethernet over SDH aggregation H9MO-LMXE supports the following services ondifferent ports: -STM-1o/STM-1e/STM-4/STM-16 -GE/FE(Opticaland Electrical) - E1/V.35/E3/DS3 -Digital subscriber line access
