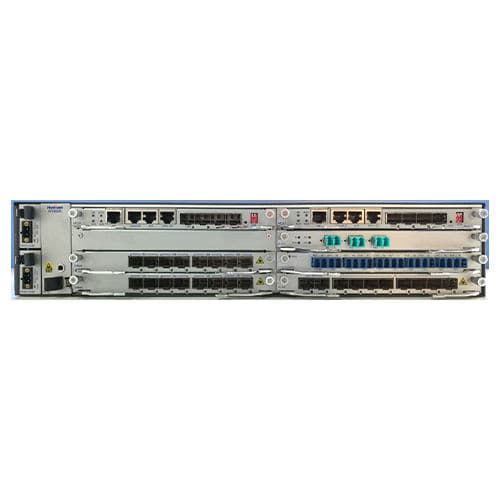

Managed switch HT8000 series

4 ports12 ports2 port

HT8000-02, HT8000-03, HT8000-13, are pizza-box OTN access device, located at the metropolitan edge layer network, supports multiservice access tothe OTN network. • The HT8000-02 providestwo 10G ports on the UNI side (10GE/ STM-64/10G FC).NNI-side 4*OTU2 ports(support 1 + 1 protection). • The HT8000-03 provides 8*Any-rateports on the UNI side (100Mbps~10Gbps); NNI side 2*OTU2 ports. • The HT8000-13 provides10*Any-rate ports on the UNI side (100Mbps~10Gbps) with Layer-2 or MPLS-TP switching functions. NNI side 2*OTU2 ports. HT8000-I, is a 1U modular-designOTN/xWDM with 4 slots, supporting 8/16 wavelength per system with EDFA/DCM/OLPcards. HT8000-IIE, is a 2U modular-designPacket OTN/xWDM with 8 slots, supporting 8/16/40 wavelength per system withEDFA/DCM/OLP cards. HT8000-VI, is a 6U modular-designOTN/xWDM with 24 slots, supporting 40/80 wavelength per system withEDFA/DCM/OLP cards. Hardware Architecchture • HT8000-02 • 1U pizza box • Support AC220V and DC-48Vpower supply • NNI: 4*OTU2 ports,supporting 1+1 protection • UNI: 2*10G ports,including STM-64 or 10GE • FEC Support:GFEC/UFEC/EFEC • 1*Console port, 1*SNMP networkmanagement port, 1*BITS Clock port • HT8000-03 • 1U pizza box • Support AC220V and DC-48Vpower supply • NNI: 2*OTU2 ports • UNI: 8*Any-rate ports,100Mbps~10Gbps • 1*Console port, 1*SNMP networkmanagement port, 1*BITS Clock port
