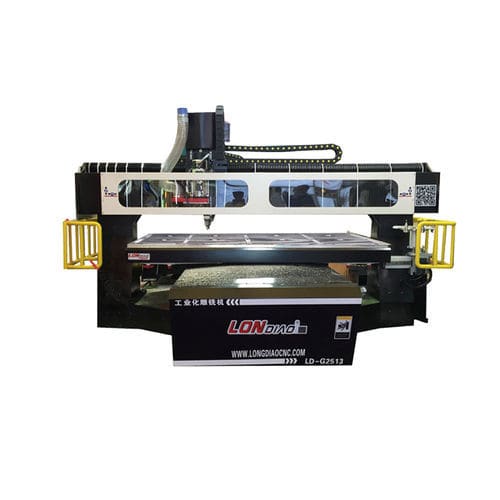

3-axis CNC milling machine LD-G2513verticalwith fixed portalengraving
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- with fixed portal
- Associated functions
- engraving, cutting
- Other characteristics
- high-precision
- Power
9 kW
(12.24 hp)
Description
1. Control system: Taiwan SYNTEC engraving and milling machine control system.
2. Spindle power: the original HSD9KW spindle cutting from Italy.
3. Driving mode: Japan YASKAWA servo motor drives.
4. Number of dao Banks: 6 dao Banks, straight-line dao changing (optional with bamboo hat dao library).
5. Transmission mode: Taiwan PMI high-precision ball screw.
6. Machine structure: fixed gantry structure, platform movement, machine cast iron.
7. Material fixation: integrated pressure suction platform, equipped with 7.5kw tongyou vacuum pump.
8. Dust protection system: the Y-axis adopts steel protective cover, and the XZ axis adopts organ protective cover.
