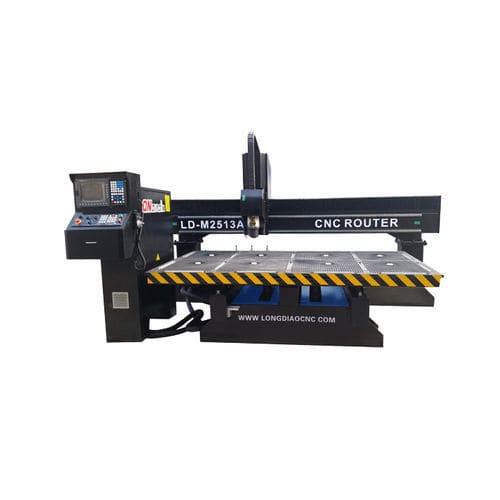

3-axis CNC machining center LD-M2513verticalengravinghigh-performance
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Associated functions
- engraving
- Other characteristics
- high-performance, with automatic tool changer
- X travel
2,500 mm
(98.43 in)- Y travel
1,300 mm
(51.18 in)- Z travel
200 mm
(7.87 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 24,000 rpm
(150,796 rad.min-1)- Work feed X-axis
35,000 mm/min
(23 in/s)- Work feed Y-axis
35,000 mm/min
(23 in/s)
Description
Control system: NK control system
Drive motor: Japanese yaskawa servo motor
Quantity of knife bank: 4 sets (6 sets are optional)
Transmission: Taiwan PMI ball screw, high accuracy, stable transmission
XYZ guide: Taiwan HIWIN square line (guide Y 30, guide XZ 25)
Machining accuracy: 0.005 mm
The handle diameter: 3.175 Φ, Φ 4, 6, Φ Φ 12.7, Φ 14
Command: HPGL, G code
Move mode: move the table
Vacuum performance: 230L/H (7.5kw special vacuum pump)
Self-lubricating system: screw automatic lubrication system
