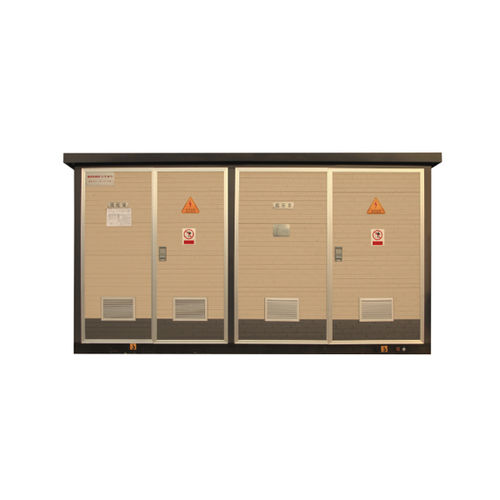

Power distribution substation YB-12/0.4

prefabricated

Overview European type secondary substation integrates 6～10 kV medium voltage switchgears, 6～10 kV/0.4 kV, 1250k V A secondary transformer and low-voltage switchgears into a prefabricated housing. YB-12/0.4 prefabricated substation could be used in power distribution system of both ring main type and radial type grid power supply system. It is applicable in construction sites, factories, mines, oil fields, residential quarters, commercial centers, high-rise buildings, streets and other places. Product Features Less Space Occupation Only 1/5～1/4 of space occupation compared to the traditional substation with the same capacity. Lower Cost  Less cost in construction and both of high voltage and low voltage cabinets, only 1/3～1/2 of the cost of the substation with the same capacity. Higher quality of power supply S11/S13 fully sealed oil-immersed power transformer or S C B9 dry type power transformer could be used in this type of substation, thus the no load loss and the noise are lower. Because the substation volume is smaller, it can be mounted near the load center, thus the line loss is decreased, the power supply quality is guaranteed. Less maintenance As high as IP43 of the protection level, assuring the functions of anti-dust, anti-rain, small animal resistance and anti-misoperation, leading to higher level of power supply security and reliability; compact internal components, automatic monitoring function is complete, maintenance workload is relatively reduced.  Easy to install and reliable running Under the condition of prefabrication, after the overall hoisting and fastening the anchors, it can be wired, commissioned, and starting running.
