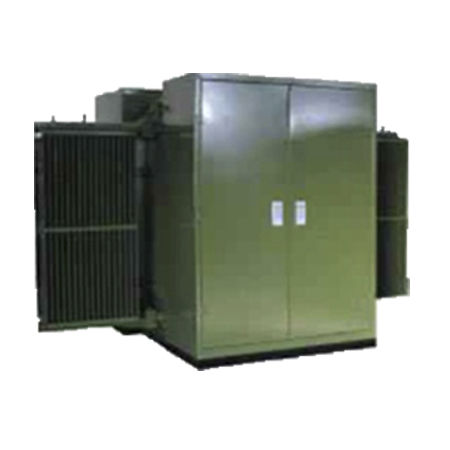

Power transformer ZGS11-Z.F series

distributionimmersedsubstation

Overview ZGS11-Z.F wind power Pad-mounted transformer is applied in 35kV terminal power supply system, which could be used as the substation, power distribution equipment, metering, control and protection devices. This product is a complete set of strong integrated products, including high-voltage equipment, transformer, low-voltage equipment, secondary monitoring and control equipment. This Pad-mounted transformer also includes the light controller, soft startup device, remote controlling device. The secondary control part of the Pad-mounted transformer is design reasonably; all contacts relating to alarming and tripping are designed to be led outside the transformer side, to ensure the transformer operation safety. Features The oil tank is equipped with 35kV 11type oil-immersed step-up transformer, and the oil tank is fully sealed structure, the radiator is rationally laid, and the high-performance seals, pressure relieve valve, gas relay, oil level gauge, temperature controller are equipped. The advantages are low loss, low noise, low temperature rise, high resistance to short circuit, high overload, no leakage and so on. In addition, the high-voltage load switch and high-voltage fuses are also placed in the oil, the use of transformer oil as an insulating medium, which has a strong electrical performance. In addition, high-voltage load switch and high-voltage fuses are also placed in the oil tank, the transformer oil is used as the insulating medium, which makes it has a strong electrical feature.
