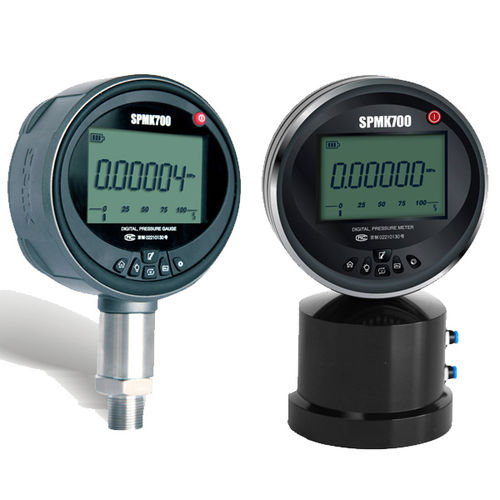

Digital pressure gauge SPMK700
explosion-proofcalibration

Digital pressure gauge - SPMK700 - Beijing Spake Technology Co. - explosion-proof / calibration
Digital pressure gauge - SPMK700 - Beijing Spake Technology Co. - explosion-proof / calibration
Digital pressure gauge - SPMK700 - Beijing Spake Technology Co. - explosion-proof / calibration - image - 2
Digital pressure gauge - SPMK700 - Beijing Spake Technology Co. - explosion-proof / calibration - image - 3
Add to favorites
Compare this product


Characteristics

Display
digital
Protection level
explosion-proof
Applications
calibration
Pressure

2,500 bar
(36,259.43 psi)

Process temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Description

High Accuracy digital pressure gauge 0.05%F.S,0.1%F.S Available Standard pressure gauge for calibration. OVERVIEW: With advanced microprocessor technology and high-tech silicon pressure sensors, SPMK700 digital pressure gauge provides an accurate ,reliable and economic solution for wide range of pressure applications. Each silicon pressure sensor in gauges has been specially tested and screened before assembly FEATURES: Pressure ranges to 36,000 psi (2,500 bar) Accuracy of ±0.025% FS, ±0.05%FS(± 0.1%FS) , ±0.2%FS Large display with backlit Optional 10 pressure units: Pa, kPa, MPa, mmHg, kfg/cm 2 ,cmH2O, mmH2O, psi, mbar, bar National explosion-proof certification approved (Certificate#.: Exia II CT4Ga) TECHNICAL SPECIFICATIONS: Environmental Temperature: 0~122°F (0~ 50°C) Environmental Relative humidity: ≤95%R.H Atmospheric pressure: 0.86~1.01 bar ( 86~101kpa) Adaptor: M20x1.5 optional Power: Rechargeable lithium battery or power adapter Dimension: φ120×45(mm) Net Weight: 0.7kg
