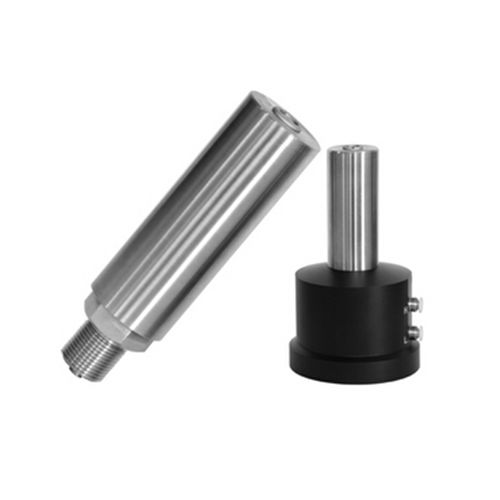

External pressure module SPMK SDP

SPMK SDP Pressure Module, connect with SPMK 518 / 517 Process Calibrator (External.) SDP Intelligent Pressure Module Pressure ranges to 36,000 psi (2,500 bar) Pressure type: Gauge pressure, absolute pressure, differential pressure Accuracy: ±0.05%FS Connection: M20x1.5 Optional Signal output: RS232, 9,600 baud rate, date length 8 digits, no stop bit Communication distance: Wire diameter no less than 0.6mm, max distance 3-5m Operation temperature: 0-50℃ Environmental Relative humidity:≤95%R.H Atmospheric pressure: 0.86~1.06 bar (86~106kpa) Output signal: (0~200) mV Dimension: φ35×133.5(mm) Net Weight: 0.28kg
