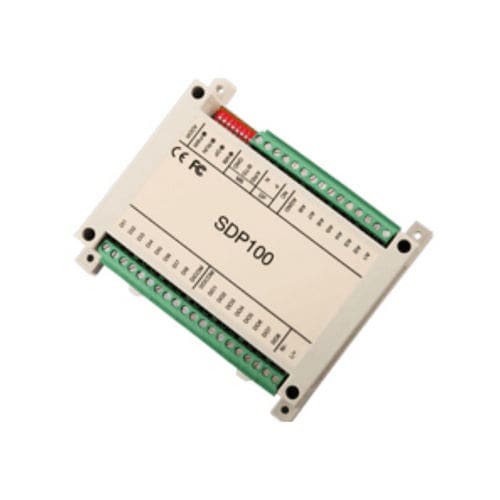

Analog I/O module SDP100RS485RS232PROFIBUS-DP
Add to favorites
Compare this product
Characteristics
- Signal type
- analog
- Bus
- RS485, RS232, PROFIBUS-DP
- Number of inputs/outputs
- with relay output, 8 analog inputs, 8-channel
- Mounting
- DIN rail
Description
Operating Temperature Range –20~70°C
8 channel analog input (0~5v or 0~20mA) , 12 bit
8-point isolated digit input 5-48 VDC(with SOE), or 8-point single channel counters up to 1 KHz
8-point relay output, 250VAC 5A per point or 30VDC 5A per point
one RS232 or RS485, MOBUS RTU , 300-38400bps
one PROFIBUS DP, 187.5K BPS
AC(85-265V) or DC 24V power supplies
125x110x40 size
