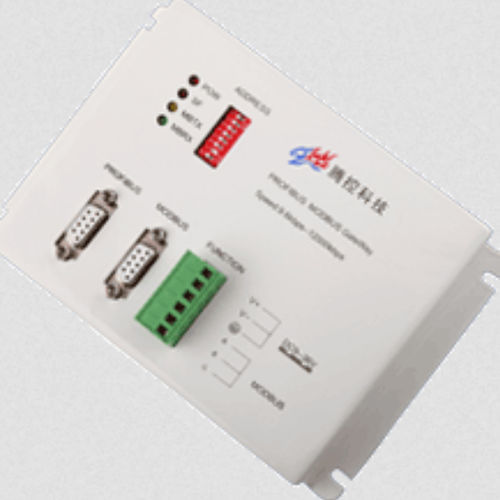

Communication gateway TG-7530

serialModbusPROFIBUS DP

The PROFIBUS /MODBUS protocol gateway, the address of the PROFIBUS-DP slave, MODBUS RTU master Compatible Profibus-DP protocol, Photo-coupler Isolated bus ports Max bus transmit rate 12Mbps, baudrate self-adaptive Profibus-DP slave station address support 1~126 Max supoort input/output each 168 bytes Serial communication support Modbus RTU protocol master station mode,max baudrate 115200bps Can connect all kinds of Modbus RTU slave station equipments Max support 24 Modbus Query Messages Bus transmit rate 9.6K-12Mbps, self-adaptive 1 Modbus port, 1 Profibus-DP port, port communication rate 9.6-115.2Kbps Address Setting: DIP SW 1~31 Operation Condition Operating temperature: -40°C~ 85°C Storage temperature: -40°C~85°C Operating humidity: <85% RH(20±5°C) Atmospheric: 86~108Kpa, No corrosive gas or heavy dust Input/Output M3 screw terminals Mounting: Surface or DIN rail Power Supply: DC 9~36V Ingress Protection: IP20
