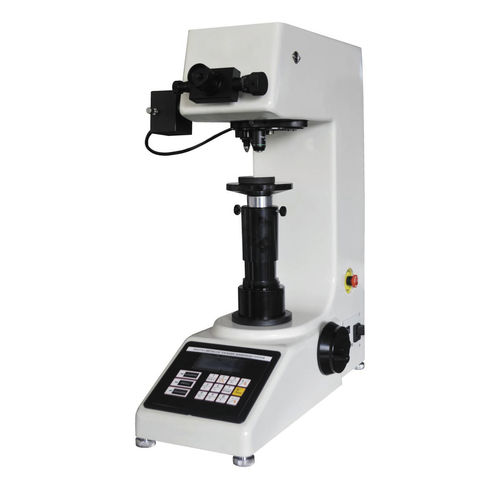

Vickers hardness tester TH721 series
benchtopmetalfor steel

Vickers hardness tester
Vickers hardness tester
Add to favorites
Compare this product


Characteristics

Type
Vickers
Mounting
benchtop
Product applications
metal, for steel, for glass, for paints and coatings
Other characteristics
LCD digital display, with control panel, automatic, cost-effective
Norms
ISO 6507
Load

Max.: 50 kgf

Min.: 0.5 kgf

Weight

35 kg
(77.2 lb)

Description

TH721/721Z Digital Vickers hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. It adopts load cell control system, improves the precision of the test force and the repeatability and stability of the indicating value. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly shows the test force, indentation length, dwell time, test numbers, conversion scale, date and time. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen. It can be equipped with LCD video measuring device and CCD image automatic measuring system. Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
