Metallographic microscope TIME-2000W

for surface inspectionindustrialmetallurgical

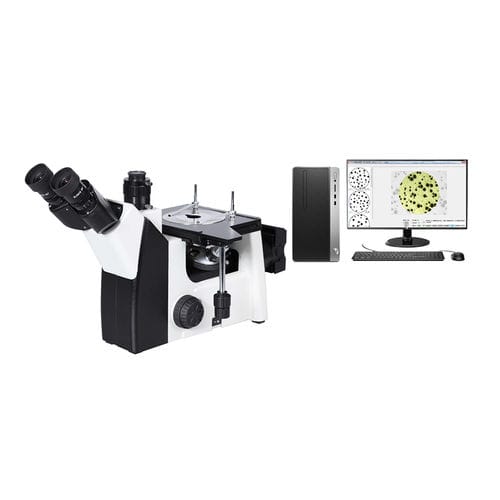

TIME-2000W is a computerized trinocular inverted metallurgical microscope, used to identify and analyze the structure and components of various metals and alloy materials. It is widely used in factories or laboratories for the identification of casting quality, raw material inspection or metallographic analysis after processing, as well as the research of some surface phenomena such as surface spraying. It is the ideal equipment for metallographic analysis of steel, non-ferrous metal materials, castings, coatings, lithofacies analysis, and microscopic analysis of compounds and ceramics in the industrial field. Focusing Mechanism It adopts the coaxial focusing adjustment mechanism for coarse and fine adjustment, which can be adjusted on both the left and right sides, with high precision of fine adjustment, simple and convenient manual adjustment, and users can easily obtain clear and comfortable images. The coarse adjustment stroke is 38mm, and the fine adjustment accuracy is 0.002mm. Stage It adopts a large-size stage of 180×155mm and is set in the right-hand position, which conforms to users’ operating habits. It is convenient to switch the operation of focusing adjustment and platform movement, providing users with a more efficient working environment. Illumination Koehler illumination system with variable aperture diaphragm and center adjustable field diaphragm adopts adaptive wide voltage 100V-240V, 5W high brightness, long life LED lighting.
