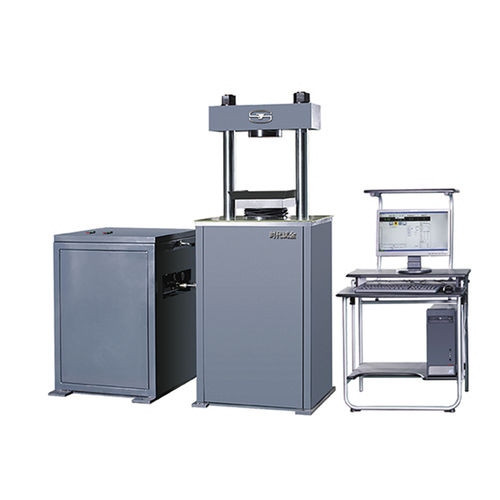

Compression testing machine YAW-300B

computer-controlledfor cementfor research and development

YAW-300B Computer Controlled Servo Hydraulic Cement Compression Testing Machine is mainly used to do anti-compression strength test of cements. It is the ideal testing machine for cement quality control and a necessary instrument for building projects concerning cement quality control. Standard It conforms to ISO679:1989 — Methods of testing cements; determination of strength Applications It is widely used in different quality control departments, and also a ideal machine for colleges and institutes to make the material research • Max. capacity (KN) : 300 • Measuring range : 4%-100% of FS • Relative error of reading : ≤±1% • Max. distance between two platen (mm) : 250 • Compression platen size (mm) : Φ150 • Max. piston stroke (mm) : 35 • Max. piston speed (mm/min) : Approx. 50 • Column clearance (mm) : 285 • Oil pump motor power (KW) : 1.5 • Load frame dimensions (mm) : 540*540*1409 • Cabinet dimensions (mm) : 620*520*740 • Load frame weight (KG) : Approx. 1500 • Oil source control cabinet weight (KG) : Approx. 400
