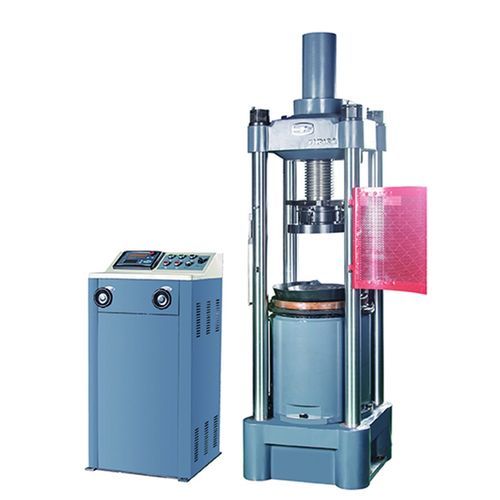

Compression testing machine YES-2000C

motorizedfor building materialsfor cement

YES-2000C series testing machine is mainly used to the compression test of concrete, cement and cement products, various blocks, hollow bricks, tiles and other ordinary building materials. Applications It is widely used in different construction materials works, different project building sites, quality control departments, colleges and institutes as well as other areas and works concerning compression tests. • Max. capacity (KN) : 2000 • Measuring range : 4%-100% of FS • Relative error of reading : ≤±1% • Max. distance between two platen (mm) : 420 • Compression platen size (mm) : Φ300 • Max. piston stroke (mm) : 0-100 • Max. piston speed (mm/min) : Approx. 30 • Column clearance (mm) : 368*318 • Oil pump motor power (KW) : 1.5 • Whole dimensions (mm) : 590*580*2050 • Whole weight (KG) : Approx. 2000
