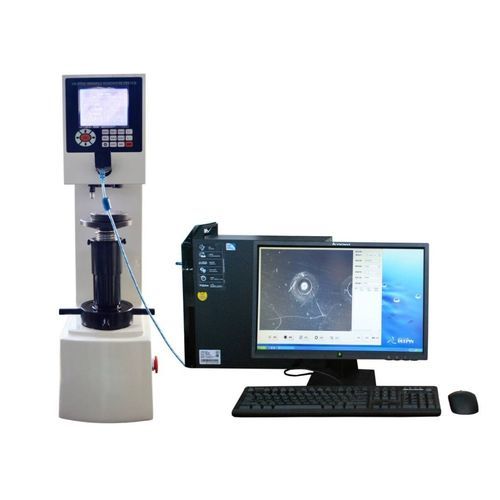

Hardness tester with measurement monitor

Brinellbenchtop

Brinell CCD Image automatic measuring system combines the computer software and the hardness tester, the whole test procedure is finished through the easy operation of keyboard and mouse click, which avoids the visual fatigueand man-made error and can test different kinds of hardness. It is equipped with a CCD camera easy to observe, and can directly observe and measure the indentation on the display. For test conditions of setting, the results can be clearly and conveniently operated and displayed. It can automatically carry out the calculation of infiltration depth, statistical calculations, conversion, display curve, judging whether qualified and save the result as WORD or EXCEL documents. 1. Include all functions of image processing and measurement system, such as image capture, calibration, image processing, geometric measurement, annotation, photo album management and fixed times print etc; 2. Automatically capture the indentation and measure the diameter and calculate the corresponding value of Brinell hardness; 3. The system can convert the measured Brinell hardness value HB to other hardness value such as HV, HR etc; 4. The system can automatically calculate the average value, variance and other statistical value of the hardness; 5. Automatic mark the abnormal value, when the hardness exceeds the specified value, it automatically alarms; 6. Automatically generate the report of WORD or EXCEL format, the report templates can be modified by the user. 7. Click on the interface button or press the camera button or press the run button to automatically complete all the work; if need manual measurement or modify the results, just drag the mouse;
