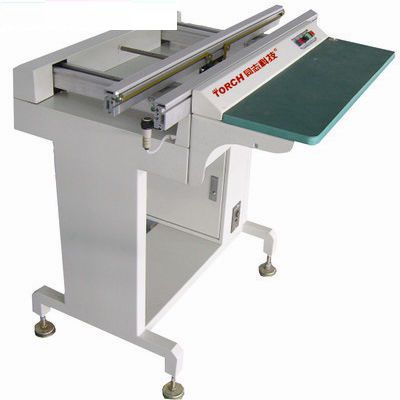

Belt conveyor TS35for printed circuits
Add to favorites
Compare this product
Characteristics
- Technology
- belt
- Transported product
- for printed circuits
Description
Technical Parameter:
1 steel frame structure
2. special aluminum rail of 33 × 55mm, 7mm wide, 1mm thick, green flat belt conveyor
3. Dedicated rail to adjust the width, the width range 50-300mm adjustable
4. each one Sensor at inlet and outlet.
1. rail length: L= 1000mm.
2. Conveyor direction: R->L or L>R.
3. Taiwan STK 15W speed adjustable motor 1 suit
4. Gear rate: 1:15.
5. board stop number: 1 pc
6. Transmission height:900±30mm
7. 200mm width anti-static worktable.
8. front and back equipment can communicate
9. Air supply:0.4-0.6MPa.
10. power supply:220V 50HZ
11. Power is 0.2KW.
16.Weight: 80kg
