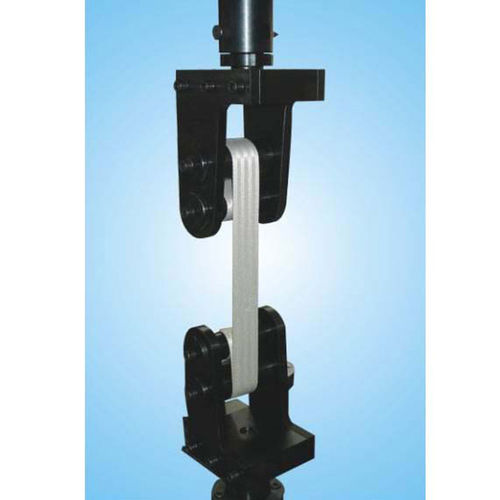

Compression testing machine WDW-01/02/05(E / Y)

tensilefor materialselectromechanical

WDW-01 ~ WDW-5 Universal testing machine Test for: Tensile, compression, flexural, bending, shear, peeling, tear Specification: 1, Max. load: 100N - 5000N 2, Measuring force range: 0.4%～100% 3, Accuracy of testing force: ±0.5% of indicated value 4, Displacement resolution: 0.001mm 5, Speed: 0.1mm/min~500mm/min 6, Effective testing space: 700mm 7, Power supply: 220V±10%，50/60Hz 8, Dimension: 520×380×1450mm Application: Steel, Plastic, Rubber, Paper, Film, Rope, steel wire, silk etc., Load weighing system meets or exceeds the requirements of the following standards: ASTM E4, EN10002-2, BS 1610, DIN 51221, ISO 7500-1. Test method standard like: ASTM D638, ASTM D695, ASTM D790, ASTM D412, 624, ASTM D882, ISO 527, ISO 37, ISO 604, ISO 178 and other equivalent BS, ASTM, JIS standard.
