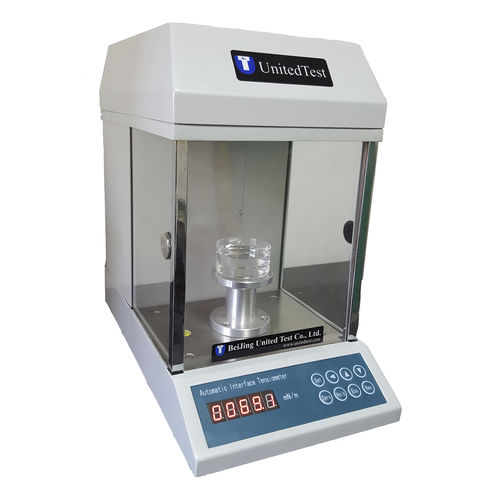

Tensiometer

Surface / Interfacial tensiometer is an ideal device used to determine water (soil moisture) potential tension in the vadose zone. It’s widely used to inspect the insulation oil materials in irrigation works, electric power department; or research and education work in petroleum, chemical engineering, science academy. ★Mainly consist in platinum ring, platinum torsional wire, differential sensor and data processing system etc. ★Easy to operate, high accuracy, auto calculate the liquid surface or interface tension value; ★Digital display the load; Measuring tray auto up and down; Automatic one key adjust Zero point function; With peak value holding function; Automatic stop when the liquid film break; ModelTEN201 Measuring methodMotorized automatic Display typeDigital display PrinterMicro printer (optional) Measuring range0~200mN/m Min. dial scale0.1mN/m Platinum ring radius9.55mm Platinum torsion wire0.3mm Platinum ring perimeter length60mm Sample tray stroke25mm Glass cup volume60ml Sample tray speed15 mm/min±2 mm/min Dimensions400*250*350mm Weight22kg Power220V, 50HZ / 110V,60Hz
