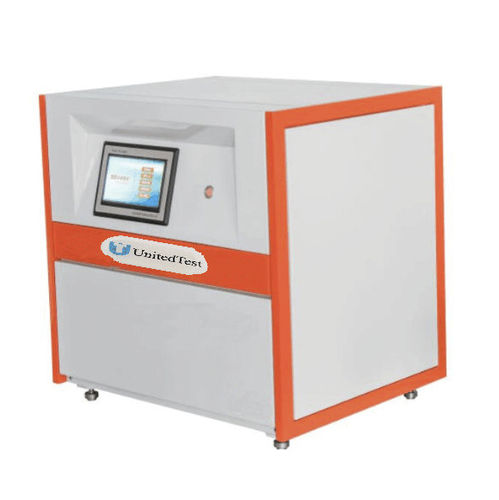

The pipe opacity tester can be used to determine the impermeability determination of plastic pipes and fittings (showing results as a percentage). The instrument is controlled by an industrial touch screen and operated by a touch screen. It has the function of automatic analysis, recording, storage, display. The series of products are widely used in scientific research institutions, universities, quality inspection departments, production enterprises.
Conform to standard: ISO 7686:2005 Plastics pipes and fittings — Determination of opacity
Feature:
1, can be tested at the same time four specimens, if less than four specimens can also be selected to test;
2, the use of industrial-grade anti-jamming ability of the touch screen as a human-computer interaction interface, the operation process is simple and convenient;
3, light-flux acquisition system using high-precision optical collectors and at least 24 bits of module-digital conversion circuit.
4, with four specimens, 12 measuring points automatic ally, positioning, tracking, mobile test function, that is, to achieve fully automatic measurement.
5, with automatic analysis, recording, storage, display functions.
optical wavelength: 545nm x 5nm, led energy-saving standard light source
light flux resolution: ±0.1%
light flux measurement error: ±0.5%
Grating: 5 kinds of specifications: 16, 20, 25, 32, 40
automatic in/out speed: 384mm/min
automatic in/out of the position moving distance: 160mm±0.5mm
sample tracking system movement speed: 420mm/min
sample tracking system positioning accuracy: ±0.1mm
