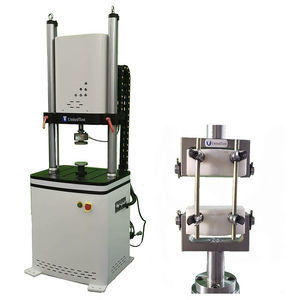

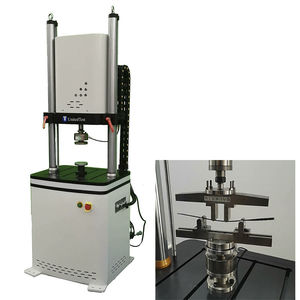

Fatigue testing machine UT1021S

compressionspeeddynamometer

The cylindrical shock absorber dynamographical fatigue testing machine is mainly used for dynamic and static tests such as dynamo, speed, fatigue life, compression, damping and other dynamic and static tests for the cylinder shock absorber and spring used in cars, special vehicles, armored vehicles, electric vehicles, motorcycles and other motor vehicles, and is a cost-effective testing machine. The whole machine has reasonable structure, simple and reliable, accurate and convenient test space adjustment and test stroke adjustment; The specimen is easy and reliable to clamp; The whole machine runs smoothly, easy to maintain, maintain and other characteristics. The maximum speed of this shock absorber dynamometer is 1.04m/s, and the speed parameters can be set at will below this speed. Maximum test force (KN) 20KN (according requirement) Test frequency 0.5~5Hz Test the maximum stroke 100mm Dynamometer test maximum line speed 1.04m/s Dynamometer test minimum linear speed 0.1m/s Sensor test accuracy ±1%FS Counter capacity 9*10^9 Count downtime accuracy ±1 Maximum outer diameter of the specimen Φ150mm (special fixture can be designed) Installation workstation 1 pc Maximum specimen length 800mm Supply voltage (3-wire 4-phase system) 220V/380VAC 50Hz Main motor power Approx. 15kW
