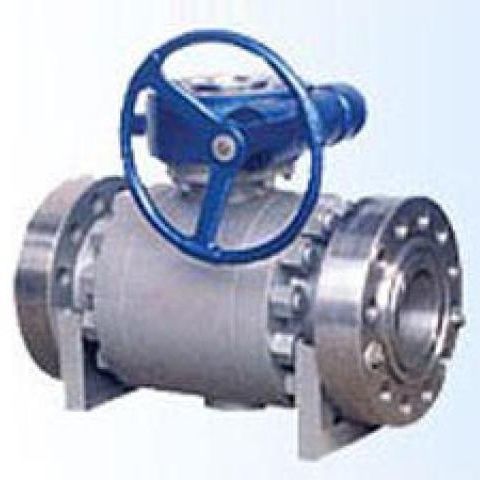

3-piece valve Q*47F/H ballmanualpneumatic
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual, pneumatic, electric, hydraulic
- Function
- shut-off
- Media
- for water, for CNG, petroleum, for natural gas, for liquefied natural gas
- Body
- 3-piece
- Associated function
- injection
- Other characteristics
- standard, anti-static
- DN
Max.: 1,500 mm
(59.055 in)Min.: 50 mm
(1.969 in)- Temperature
Max.: 593 °C
(1,099 °F)Min.: -196 °C
(-321 °F)
Description
3-pcs Ball Valve
Product type - On/Off Valve -
Valve Type - 3-pcs Ball Valve -
Model - Q*47F/H -
Size - NPS 2～NPS 60
Standard - API 6D/API 608/BS5351/ISO 17292 -
Face to face - ASME B16.10 -
Connection - ASME B16.5/ASME B16.47/ASME B16.25 -
Test std. - API 598/API 6D/ISO 5208 -
Operation - manual, electric, hydraulic, pneumatic, gas over oil, electric over oil -
Application - water, petroleum and natural gas, CNG, LNG -
Structure - DBB,DIB-1,DIB-2 -
Remark 1 - Fire safe and anti-static design -
Remark 2 - Injection System -
Remark 3 - Valve anti-blow out stem design to prevent stem blow out caused by abnormal pressurization of the pipeline
