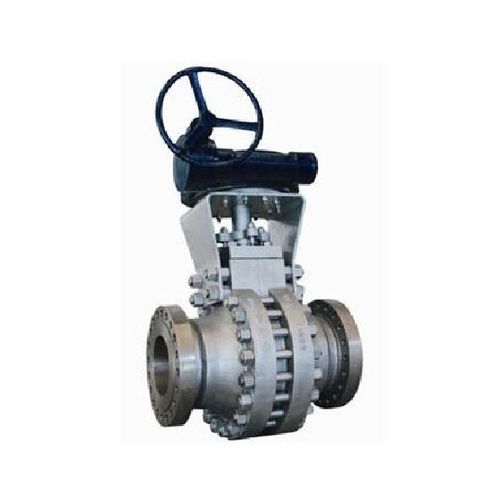

Ball valve Q*49Hwith handwheelpneumaticelectric
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- with handwheel, pneumatic, electric
- Function
- shut-off
- Media
- for water, for sludge
- Applications
- for pipelines, wheel
- Other characteristics
- anti-static, wear-resistant, fire-safe
- DN
Min.: 80 mm
(3.15 in)Max.: 600 mm
(23.622 in)- Temperature
Min.: -46 °C
(-51 °F)Max.: 593 °C
(1,099 °F)
Description
Lock Hopper Ball Valve
Product type
On/off valve
Valve Type
Lock Hopper Ball Valve
Model
Q*49H
Size
NPS 3～NPS 24
Operating temp.
-46℃～593℃
Seal type
Metal to Metal
Operating pressure
CLASS 150～CLASS 900
Material
WCB/LCB/CF8/CF8M etc.
standard
API 608/ISO 17292/BS 5351
Face to face
ASME B16.10
Connection
ASME B16.5
Test std.
API 598/ISO 5208
Operation
worm wheel wheel, electric, pneumatic
Application
water-coal slurry service
Remark 1
Fire-safe and anti-static design
Remark 2
Valve stem anti-blow out design to prevent stem blow out caused by abnormal pressurization of the pipeline
Remark 3
wear-resistant,erosion resistant
