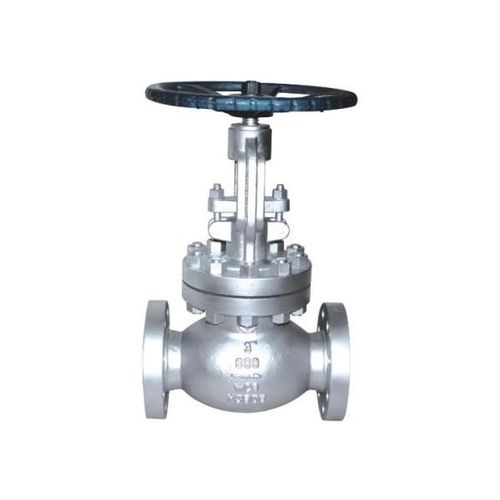

Globe valve J41Hwith handwheelpneumaticelectric
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel, pneumatic, electric
- Function
- for control
- Media
- for chemicals, petroleum
- Applications
- chemical
- DN
Min.: 50 mm
(1.969 in)Max.: 600 mm
(23.622 in)- Pressure
Min.: 20 bar
(290.1 psi)Max.: 420 bar
(6,091.6 psi)- Temperature
Min.: -46 °C
(-51 °F)Max.: 593 °C
(1,099 °F)
Description
Globe valve
Product type
Switch Valve
Product description
Globe valve
Model
J41H
Size
NPS 2”～24”(DN50～DN600)
Operating temperature
-46℃～593℃ACC to material
Operating pressure
CLASS 150～2500 (PN 20～PN420)
Material
A216 WCB、WCC; A217 WC6、WC9、C5、C12、C12A、CA15; A351 CF8、CF8M、CF3、CF3M、CF8C、CN3MN、CK3MCUN、CN7M;A352 LCB、LCC; A494 CW-6MC、CU5MCuC、M35-1; A890 4A(CD3MN)、5A(CE3MN)、6A(CD3MWCuN); ASME B 148 C95800、C95500 .etc
Standard
API 623、BS 1873 、ASME B16.34
Face to face
ASME B16.10
Connecting end
ASME B16.5、ASME B16.25
Test standard
API 598、ISO 5208
Operation
handwheel, worm wheel ,electric ,pneumatic
Application fields
electric power industry, petroleum refining, petrochemical industry, offshore oil, chemical industry and etc
Seal material
13Cr , STL
Other remark 1
The disc shape including: tapered, needle type, spheroidal, parabola, apply to adjust the flow.
