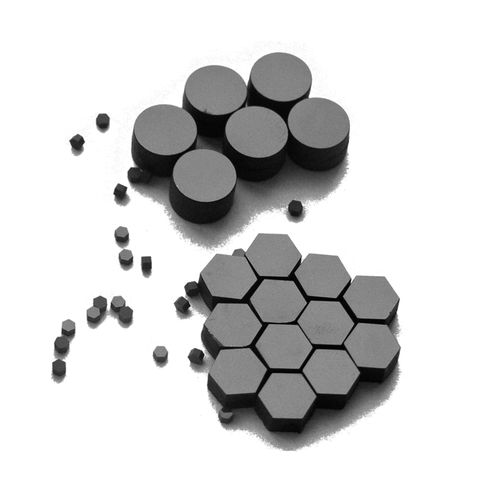

Diamond blanking dies CXD series

Application: Self-Supported diamond die blanks used to draw stainless steel wire, copper wire, aluminum wire, tungsten wire, molybdenum wire, coated steel wire and related alloy wire etc. Description: Self-supported diamond die blanks are denser and more compact in microstructure than its competitive products. Moreover, there is hardly any abnormal grow of grains such as nucleation or aggregates. This brings much ease in hole machining and polishing, resulting in higher surface finish and longer tool life. The Self-Supported diamond die blanks uses our own patent technology to conduct one side polishing. Features: 1. Has a regular and compact microstructure. 2. Rarely sees the abnormal grow of grains. 3. Features easy grinding, easy polishing and high smooth finish. 4. Features long service life. 5. Be particularly suitable for high speed wire drawing. Technical Specifications: Item Product No. Dimensions (mm) Available Grain Size (μm) φd φD t Max 5 10 20 30 40 D6 CXD--R/H2510 2.5 -- 1.0 0.4 √ √ √ √ √ D12 CXD--R/H3215 3.2 -- 1.5 1.0 √ √ √ √ √ D15 CXD--R/H5225 5.2 -- 2.5 1.5 √ √ √ √ √ D18 CXD--R/H5235 5.2 -- 3.5 2.0 √ √ √ √ √ D21 CXD--R/H8040 8.0 -- 4.0 3.0 √ √ √ √ √ D24 CXD--R/H9853 9.8 -- 5.3 4.0 √ √ √ √ √ Material: We choose premium quality PCD material. Quality control: We have dedicated team of quality control and precise equipment to keep good and stable performance for our products and processing services. Customer Manufacturing Service: Client’s special requirements are welcome for developing non-standard diamond die blanks.
