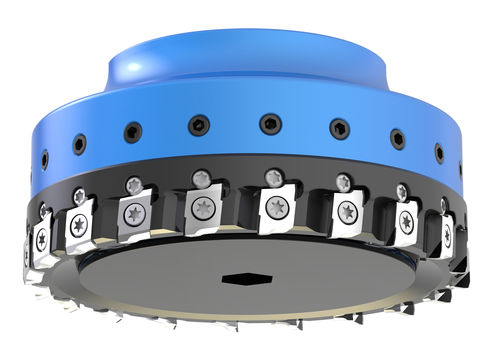

Shell-end milling tool FMP125SB40-BE12-20

indexingfaceroughing

MANANOVA is the name of Worldia's stocked standard product portfolio.lt offers top-quality products in a wide range of the most common applications at very attractive prices. Each item has an inventory code that simplifies the ordering process and MANANOVA products are shipped directly from our warehouses to any global destination within one week. MANANOVA's product range currently includes PCD and PCBN lSO inserts as well as PCD and PCBN indexable end mills with corresponding inserts. Main Applications： Worldia FMP-BE milling cutters are designed for high speed machining of light metals on small machining centers with precision spindles. Thanks to the innovative bi-metal aluminum/steel body design, the requirements for low weight, low inertia and precise balancing allow high spindle acceleration. High strength and wear resistance are also achieved. Cutters from 80 to 160 mm diameter can be mounted on the same adaptor, while the weight of a 160 mm diameter cutter with BT30 adaptor, for example, does not exceed 3 kg. All Worldia FMP-BE cutters have a standard insert pocket which allows the use of various combinations of BEHW1204PCD and PCBN tipped inserts, adjustable or non-adjustable, for a wide range of roughing and applications including hatch milling.
