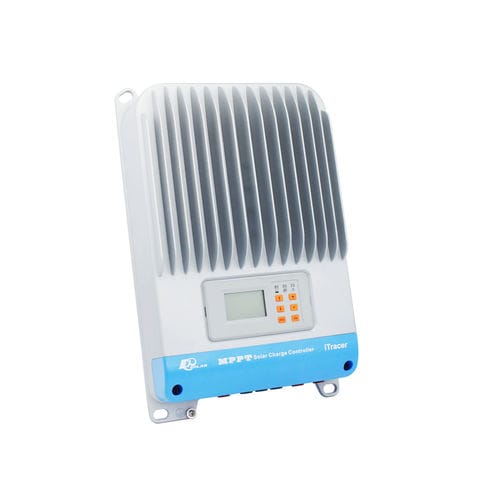

Battery charge controller iTracer-ND

solarMPPTModbus

IT6415ND charge controller with 60A DC output current adopts advanced Maximum Power Point Tracking (MPPT) algorithm, which can harvest the maximum power from the solar array to charge the battery. It is capable of supporting up to 800W PV power in 12V system, 1600W in 24V system,2400W in 36V system, and 3200W in 48V system. MPPT tracking efficiency above 99.5% Maximum charge conversion efficiency as high as 98% Battery type selection: Sealed, Gel, Flooded and User(programmable) Multiphase sychronous rectification technology (MSRT) 60A DC load output current Remote monitoring function Data-log function, recording system running information and event Die cast aluminum case design Extensive electronic protections IEC62109 certified With RS-485, RS-232 communication bus interface and Modbus communication protocol
