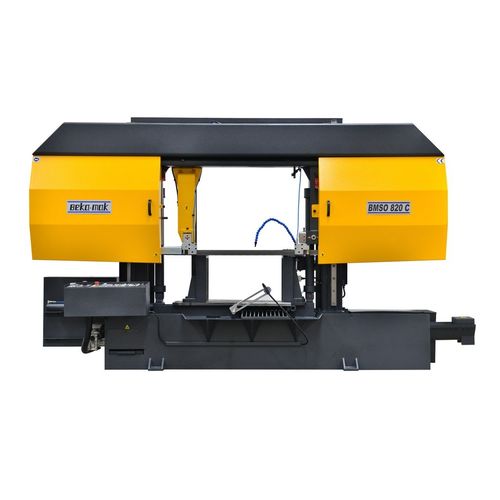

Band saw BMSO-820C

for steelfor profilesfor tubes

Fully automatic Linear Way for cutting solid stocks,tubes and profiles of steel , cast-iron light and nonferrous material for cutting at only 90°. Complete steel fabricated. The rear jaw contains of a number of hardened rollers driven through a worm and wheel by an electric motor.The front vice consist of a number of free running rollers.A limit switch assemebled on top the vice stops the machine when the block is exhausted. Once the work piece is clamped between the rollers no further clamping needed. The work is fed through the vice to the bar stop which contains a micro-switch controlling the bar feed motor. A piece counter controls the number of the cuts.The machines stop automatically at the blade breakage. The machines are fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both guide assemblies. Bi-Metal sawblade and 1,2 meters infeed roller table are supplied as standart. Optional Features • Chip Conveyor • ILC Microspray Device • 3 Mt Material Roller Table • Laser Line Pointer Standard Features • Hydraulic Blade Tension • Inverter • Hydraulic Vice • Pressure Adjustment • 1,2 Mt Metarial Roller Table • Liner Way • Saw Blade 54 • Optical Height Adjustment • Saw Blade Brash • Synchronisation Moveable Arm/Vice • Metarial Limit Shaft • Control Panel • Coolant Pump • Heavy Duty Gearbox • Security Switch
