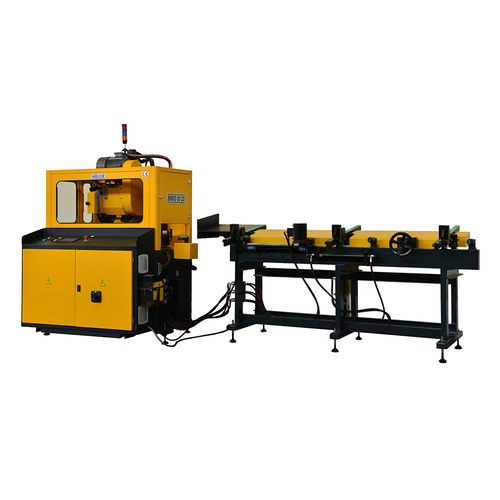

Circular saw BMDO-80CSverticalfor steelfor stainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- circular
- Orientation
- vertical
- Treated material
- for steel, for stainless steel
- Applications
- for profiles, for tubes, for bars
- Operational mode
- fully-automatic
- Other characteristics
- CE, with chip conveyor, down-cut, precision, electric, hydraulic, high-performance, servo-driven, with hydraulic vice, variable-speed, high-speed, inverter, with roller conveyor, PLC-controlled
- Circular saw blade diameter
Max.: 350 mm
(14 in)Min.: 260 mm
(10 in)- Round piece diameter
Max.: 80 mm
(3 in)Min.: 20 mm
(1 in)
Description
Vertical Slide for maximum cutting power and rigidity.
Standard with Speed Inverter for speeds of 20-100 m/min.
Electric Servo Feeding for +/- 0.05 ~ 0.1mm Cutting Length precision (per stroke)
Capacity up to 80mm in Tube and Solid Bars.
Superior Gear Box design for maximum machine life and performance.
Flexible Gripper Feeding + Floating Carriage allow for maximum feeding precision even in material which is not perfectly straight.
Intuitive and User Friendly Interface with Touch Screen system..
Ability to program multiple cutting lengths per bar.
Safety Covers for maximum operator protection and comfort.
Head for ferrous material not with endless screw, but with cemented and ground helical gear for obtaining a high operating rate without any play or vibration of the saw-blade. Head with inverter allowing a continuous change of the cutting speed.
Optional Features
ILC Microspray Coolant
6 Metre Besleme Sehpası
Standard Features
Heavy Duty Gearbox
Securty Switch
Saw Blade Brush
Control Panel
Hydraulic Vice
Inverter
HSS Circular Saw Blade
