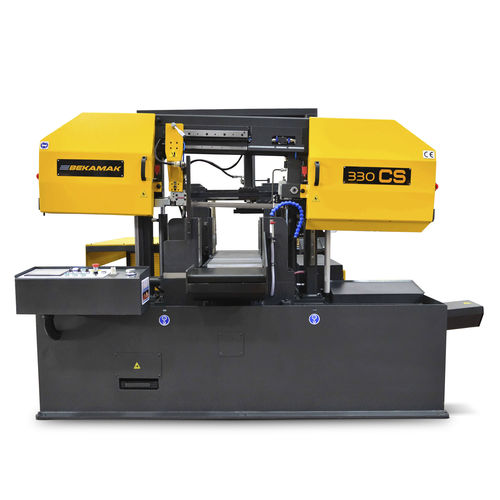

Band saw BMSO-330CS NChorizontalfor steelprofile
Add to favorites
Compare this product
Characteristics
- Technology
- band
- Orientation
- horizontal
- Treated material
- for steel
- Applications
- profile, for pipe
- Operational mode
- fully-automatic
- Other characteristics
- double-column, inverter, PLC-controlled, programmable, with chip conveyor
- Round piece diameter
330 mm
(13 in)
Description
The new CS series is designed to maximize our customers' production of heavy metal, profile and pipe cuts in high-volume units with a fully automatic servo feeding system.
CHARACTERISTICS
-User friendly Omron touch screen.
- Ability to save up to 30 different cutting lenght steps in 50 different programs.
-Servo feeding with 700mm stroke. 9.999mm multiple stroke.
-Linear way minimizes vibration.
-Chip conveyor.
-Planatery Gearbox with high efficiency.
Optional Features
• Hydraulic Blade Tension
• Multiple Segments
• ILC Microspray Device
• 3 Mt Material Roller Table
• Hydraulic Top Clamping
Standard Features
• Saw Blade 34
• Hydromechnic Blade Tension
• Saw Blade Brash
• Chip Conveyor
• Security Switch
• Moveable Arm/Vice
• Lineer Way
• Optical Height Adjustment
• Heavy Duty Gearbox
• PLC Control Panel
• Inverter
• Sensitive Pressure
• Proximity switch for sensing blade slipping
• Coolant Pomp
